One Click Solution to Handle Mass DOR Downloads In HCM Cloud

Oracle has come up with wide variety of tools to effectively address the business needs. We can download all document records based on the document type or person name, or both, and optionally specify a date range. For example, we can download all document records for a specific person or Document type such as passports for all person.

Released on: From 21D update Mass Download of Document Record is delivered Feature in Oracle HCM.

Note: Due to performance reasons, you can’t download document records of all document types for all persons. You must specify either a document type or a person.

Prerequisite Role and Privilege:

Job role Name: Human Resource Specialist, Human Resource Analyst

Privileges required downloading document records as follows:

S.No Role/Privileges Required Name Role/Privileges Required Code
1 Mass Download Document Records ORA_PER_MASS_DOWNLOAD_DOCUMENT_RECORDS

By default, all document types that are part of the user’s document type security profile will appear in the Document Type list of values (LOV) when requesting a mass download of document records.

You can restrict the list of document types that can be mass downloaded from the employment flow by configuring the HCM Flow – Document Type Mapping on the Manage Enterprise HCM Information setup page.

This mapping applies to only Mass Download of Document Records page only.

Steps to enable:

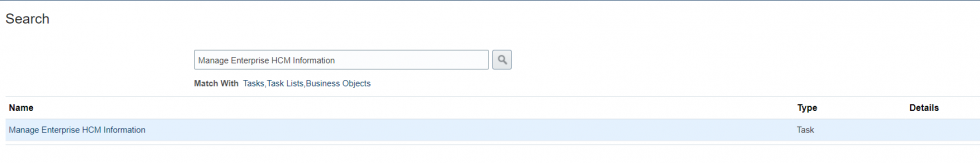

  • In the Setup and Maintenance work area, search and select the Manage Enterprise HCM Information task

Graphical user interface, application Description automatically generated

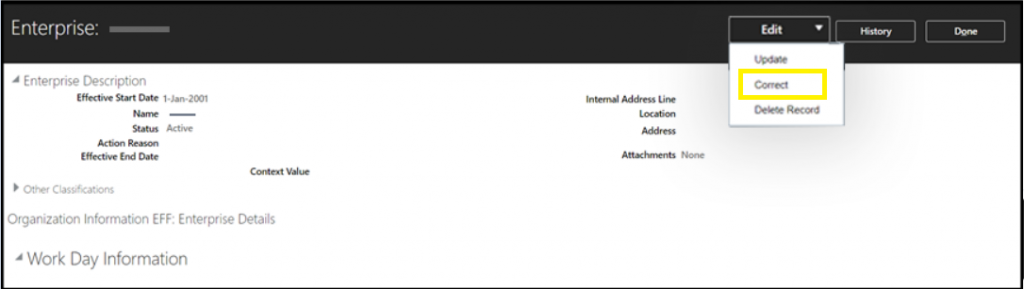

  • Click Edit, and then click Correct

Text Description automatically generated with medium confidence

  • Navigate to the  section
  • Click the Add Row (+) icon.

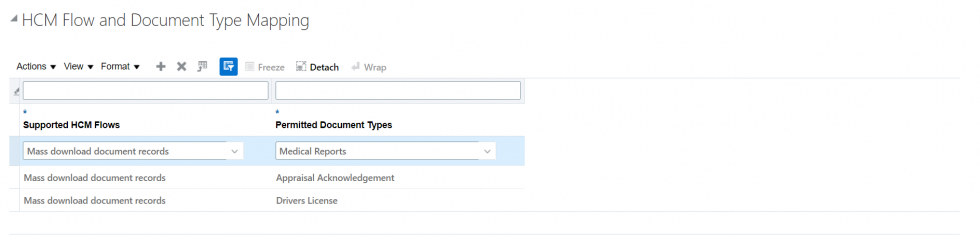

  • Search and select the Mass download document records flow and the document type.

Graphical user interface, application Description automatically generated

  • Repeat steps 4 and 5 to configure any additional mapping.
  • Click Submit and then click Yes in the warning dialogue box.
  • Click ok in the confirmation dialogue box, and then click done.

Steps to download the documents:

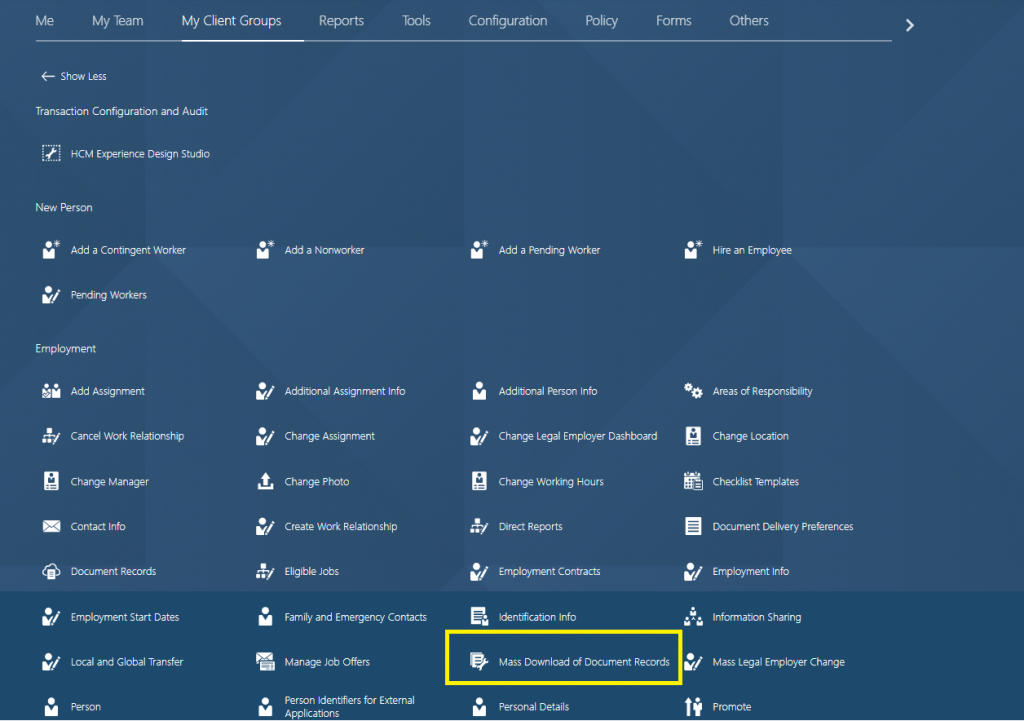

Step 1: Go to My client Groups -> Click on “Mass Download of Document Records”

Graphical user interface Description automatically generated

Figure 1: Click on Mass download of Document Records

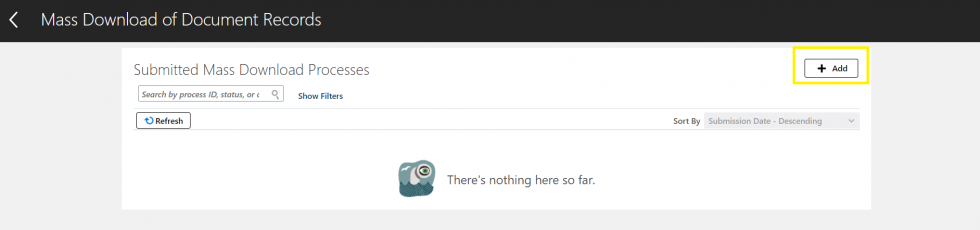

Step 2: Click the add button on the Mass Download of Document Records page to submit a new mass download request.

Graphical user interface, text, application, chat or text message Description automatically generated

Figure 2: Click on add button

Step 3: Select either Document type or Person name in the Request Details page.

Select Document type and select Group by option based on the need,

Document Type:

Select the document type which document wants to download based on your need.

Ex: Driver’s License, Non-Disclosure Form, Assignment Form

Group by category:

Based on the Group by criteria we select, the application will create download folders as follows:

None: There are no download folders created and all downloaded files are saved in a single folder. This is the default option

Document Type:  A download folder is created for each downloaded system document type. The folder name is the same as the system document type. This folder contains individual downloaded files for each person by each document type

Person:  A download folder is created for each person. The folder name is the same as the person number. This folder contains individual downloaded files for each system document type. Group by individual person.

Person: Select the person name which you want to download the Documents (If you want to download for specific person).

Record updated in date Range:

Select the date range if you want to download records updated in specific date.

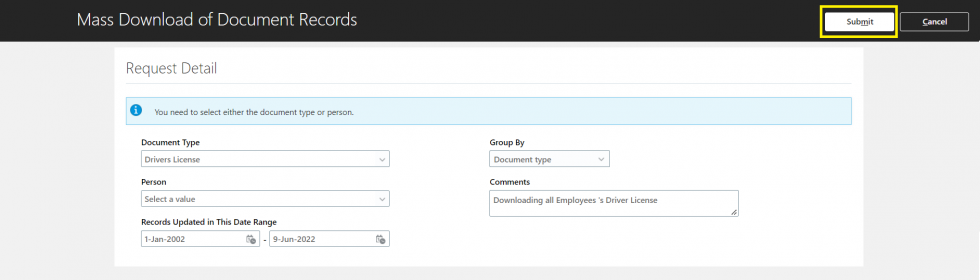

Then click on submit button then process will be submitted.

Graphical user interface, application Description automatically generated

Figure 3: Fill Request details to download

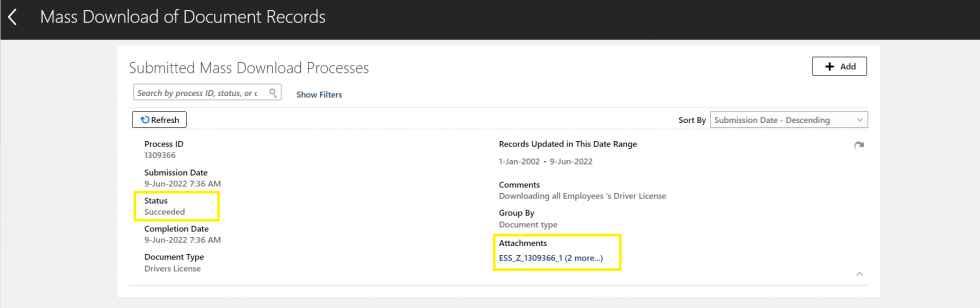

Step 4: When you submit a mass download request, an ESS process is submitted. The status of the submitted process is displayed as Running, Succeeded, or Error.

Graphical user interface, application Description automatically generated

Figure 4: Downloaded document Details

Note:

  • The individual files within the zipped file have a default size limit of 5 MB. Attachments that are larger than 5 MB are not included in the download. This size limit is controlled by the ORA_PER_DOR_FILE_DOWNLOAD_MAX_SIZE profile option which has a default value of 5 MB.
  • Profile option details: You can modify the value of this profile option to enable larger files to be included in the download.
    • Profile Option Code: ORA_PER_DOR_FILE_DOWNLOAD_MAX_SIZE
    • Profile Display Name: Document Records File Download Maximum Size
    • Default Profile Value: 5 MB
  • When a submitted mass download process succeeds, the attachments to download are available as zip files.
  • Document Records pending approval are not included in the mass download.
  • The maximum size of each zipped file is 1 GB. If the zipped file results in a size larger than 1 GB, the zipped file is split into multiple zipped files.
  • File format used in the download folder: PersonNumber_SystemDocumentType_UCMID_PhysicalFileName. For example, 955160008186124_GLB_PASSPORT_UCMFA00027817_My India Passport.pdf

Steps to download the documents for a specific person:

You can also use the Download button on the Document Records list page to download document records for a person.

Download document records for a person directly from the Document Records list page. But we have some restrictions,

  • Only the document records that you filtered on the page will be downloaded.
  • Transactions pending approval won’t be downloaded.

Step 1: Go to My Client Group ->Person management then selects a person wanted to download the documents.

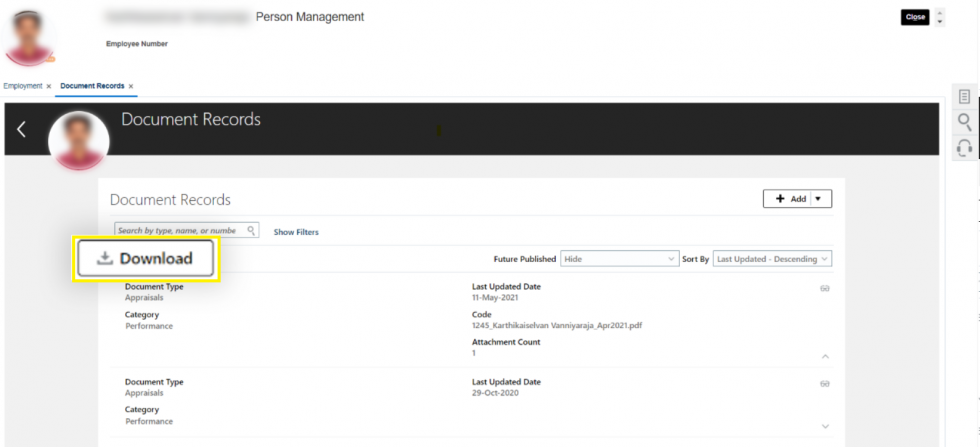

Step 2: click on Document Records task then Document Records page will open

Graphical user interface, application Description automatically generated

Figure 1: click Download to download DOR for employee

Step 3: Then click on Download button to download all the documents of the Employee.

Business benefits:

  • Facilitates HR users to download the HR documents in a single click
  • Custom criteria’s can be defined while downloading the documents.
  • Download of DOR’s can be automated with the help of rest api’s
